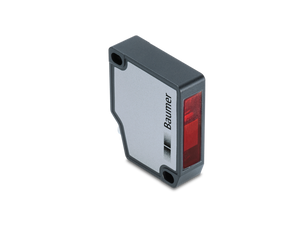

The Baumer OM30-L0100.HV.AIN 11233968 is a high-precision distance measuring sensor with a measuring distance of 50 to 100 mm and a repeat accuracy of 8 to 24 µm. It features a pulsed red laser diode light source with a wavelength of 660 nm and a laser class of 2. The sensor offers a linearity error of ±0.13% of the measuring range and a temperature drift of 0.02% Sde/K. It is equipped with a teach-in adjustment via button or external control, and visual indicators through green and red LEDs for power and output status, respectively. The device operates at a high measuring frequency of 5000 Hz and has a response delay of 0.4 ms. It supports a voltage supply range of 12 to 28 VDC and includes safety features such as short circuit and reverse polarity protection. The sensor's robust design includes a die-cast zinc housing, glass optics, and an IP67 protection class, making it suitable for harsh environments. It also withstands significant ambient light up to 100 kLux and is resistant to vibration and shock as per IEC standards. The compact sensor measures 13.6 mm in width, 49 mm in height, and 40.3 mm in depth, and weighs 67 g. It connects via an M8 4-pin connector, ensuring easy integration into various applications.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 100 mm
- Measuring range Mr:
- 50 mm
- Adjustment:
- Teach-in: button / external
- Power on indication:
- LED green
- Output indicator:
- LED red
- Repeat accuracy:
- 8 24 µm
- Linearity error:
- ± 0.13 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,02 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 1.2 mW
- Pulse duration:
- 0.001 ... 1.7 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA
- Load resistance:
- < (+Vs - 9 V) / 0.02 A
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
