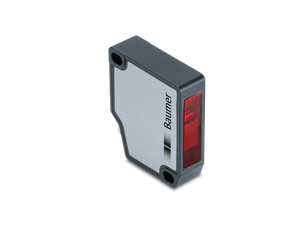

The Baumer OM30-L0350.HV.YUN 11232075 is a high-precision distance measuring sensor designed for industrial applications. It offers a measuring distance of 50 to 350 mm and a measuring range of 300 mm, with a repeat accuracy of 2 to 30 µm and a linearity error of ±0.1% to ±0.15%. The device features a pulsed red laser diode with a wavelength of 660 nm and a laser class of 2. It supports both analog and digital outputs, with a measuring frequency of 5000 Hz and a response delay of 0.4 ms. The sensor is equipped with a green LED for power indication and a yellow LED for output status. It operates on a voltage supply range of 12 to 28 VDC and includes safety features such as short circuit and reverse polarity protection. The robust die-cast zinc housing with glass optics is designed to withstand harsh environments, boasting an IP67 protection class and resistance to ambient light up to 100 kLux. The sensor's compact dimensions and M8 4-pin connector make it versatile for easy integration into various systems.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 350 mm
- Measuring range Mr:
- 300 mm
- Adjustment:
- Teach-in: button / IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- 2 30 µm
- Linearity error:
- ± 0.1 % Mr , 50 ... 200 mm ± 0.15 % Mr , 50 ... 350 mm
- Beam type:
- Line
- Temperature drift:
- 0,05 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 2 mW
- Pulse duration:
- 0.001 ... 1.2 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog and digital
- Output signal:
- 0 10 VDC / 0 5 VDC
- Load resistance:
- > 100 kOhm
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
