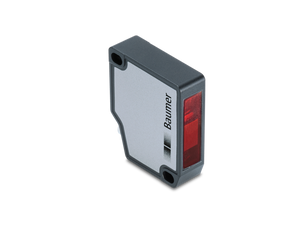

The Baumer OM30-L0550.HV.AUN 11232077 is a high-precision distance measuring sensor with a range of 50 to 550 mm and a measuring frequency of 5000 Hz. It features a pulsed red laser diode with a wavelength of 660 nm and a laser class of 2. The sensor offers a linearity error of ±0.25% of the measuring range and a repeat accuracy between 12 to 686 µm. It is equipped with a teach-in button for easy adjustment, and both power-on and output indicators through green and red LEDs, respectively. The device operates on a voltage supply range of 12 to 28 VDC and has a maximum current consumption of 50 mA when unloaded. It provides an analog output signal of 0 to 10 VDC and supports a load resistance greater than 100 kOhm. The sensor is designed with a robust die-cast zinc housing, glass optics, and an M8 4-pin connector. It is IP67 rated for protection against dust and water ingress and can operate in temperatures ranging from -10 to +50 °C. The sensor is also equipped with short circuit and reverse polarity protection, ensuring durability and reliability in challenging industrial environments.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 550 mm
- Measuring range Mr:
- 500 mm
- Adjustment:
- Teach-in: button / external
- Power on indication:
- LED green
- Output indicator:
- LED red
- Repeat accuracy:
- 12 686 µm
- Linearity error:
- ± 0.25 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,08 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 2 mW
- Pulse duration:
- 0.001 ... 1.2 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog
- Output signal:
- 0 ... 10 VDC
- Load resistance:
- > 100 kOhm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
