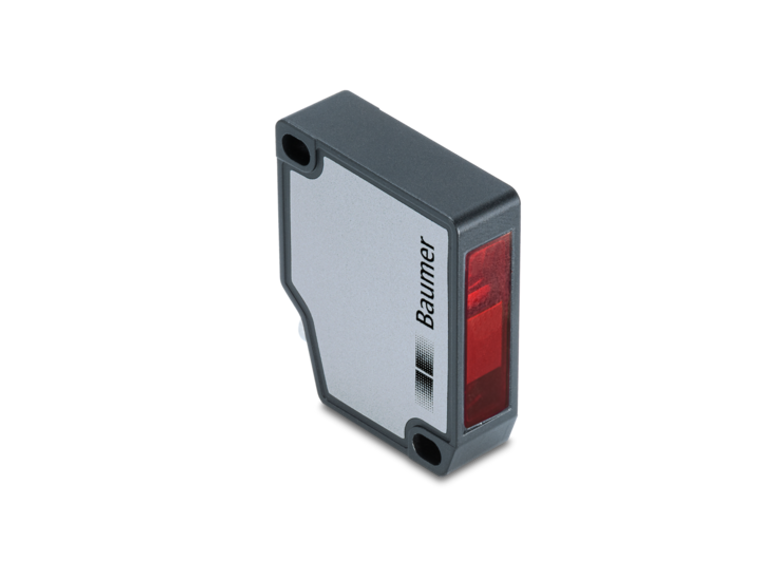

The Baumer OM30-L0550.HV.YIN 11231343 is a high-precision distance measuring sensor with a range of 50 to 550 mm and a measuring frequency of 5000 Hz. It features a pulsed red laser diode with a wavelength of 660 nm and a laser class of 2. The device offers both analog and digital outputs, with signals ranging from 4 to 20 mA or 2 to 10 mA, and includes short circuit and reverse polarity protection. It operates on a voltage supply range of 12 to 28 VDC and has a maximum current consumption of 50 mA. The sensor is housed in a die-cast zinc body with glass optics, measuring 13.6 mm in width, 49 mm in height, and 40.3 mm in depth. It is designed to withstand harsh environments with an IP67 protection class and can operate between -10 to +50 °C. The sensor also features a green LED for power indication and a yellow LED for output status, and it can be easily configured via a Teach-in button or IO-Link.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 550 mm
- Measuring range Mr:
- 500 mm
- Adjustment:
- Teach-in: button / IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- 2 86 µm
- Linearity error:
- ± 0.23 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,08 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 2 mW
- Pulse duration:
- 0.001 ... 1.2 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA
- Load resistance:
- < (+Vs - 9 V) / 0.02 A
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
