Baumer OM30-P0100.HV.YIN 11233966
Baumer

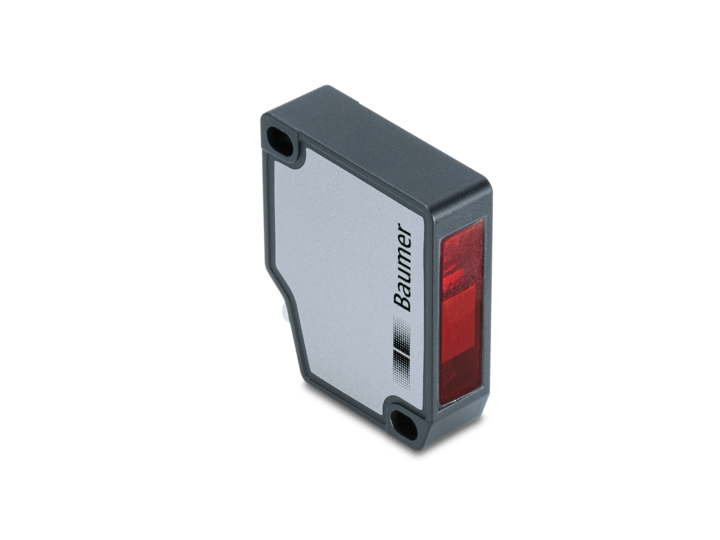

The Baumer OM30-P0100.HV.YIN 11233966 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 50 to 100 mm and a repeat accuracy of 1 to 3 µm. The sensor is equipped with a pulsed red laser diode, operating at a wavelength of 660 nm and a laser class of 2. It offers a fast response delay of 0.4 ms and a high measuring frequency of 5000 Hz. The device supports both analog and digital outputs and includes a teach-in button and IO-Link for easy adjustment. It operates within a voltage supply range of 12 to 28 VDC and has a robust die-cast zinc housing with IP67 protection, making it suitable for harsh environments. The sensor also features shock and vibration resistance, ambient light immunity, and temperature stability, ensuring reliable performance across various conditions.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 100 mm
- Measuring range Mr:
- 50 mm
- Adjustment:
- Teach-in: button / IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- 1 3 µm
- Linearity error:
- ± 0.08 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,02 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 1.2 mW
- Pulse duration:
- 0.001 ... 1.7 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA
- Load resistance:
- < (+Vs - 9 V) / 0.02 A
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
