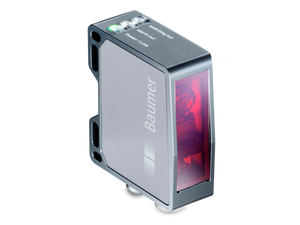

The Baumer OM70-L0140.HH0130.VI 11112019 is a high-precision distance measuring sensor from the OM70 laser line basic series, designed for industrial applications. It features a measuring distance of 40 to 140 mm and a measuring range of 100 mm, with a sweet spot at 130 mm. The device offers high resolution (1.2 to 2.5 µm) and repeat accuracy (0.3 to 0.7 µm), ensuring reliable measurements. It includes a touch display and RS485 for easy adjustment, along with LED indicators for power and output status. The sensor uses a pulsed red laser diode (660 nm wavelength, laser class 1) and operates with a fast response delay of 0.8 ms and a measuring frequency of 2500 Hz. It supports a voltage supply range of 15 to 28 VDC and features both analog and RS485 output circuits. The robust aluminum housing, rated IP67, ensures durability and resistance to harsh conditions, including vibrations and shocks as per IEC standards. The sensor is equipped with a glass front, an M12 8-pin connector, and offers protection against ambient light, short circuits, and reverse polarity.
- Type:
- Distance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 40 140 mm
- Measuring range Mr:
- 100 mm
- Sweet spot:
- 130 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 1.2 2.5 µm
- Repeat accuracy:
- 0.3 0.7 µm
- Linearity error:
- ± 0.07 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,015 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 35 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
