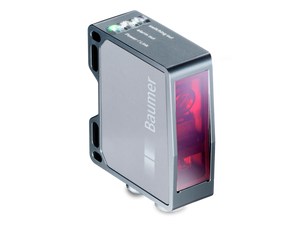

The Baumer OM70-L0250.HH0180.VI 11200068 is a high-precision distance measuring sensor from the OM70 laser line series, designed for a measuring distance of 50 to 250 mm with a sweet spot at 180 mm. It features a touch display and RS485 for easy adjustment, and uses a pulsed red laser diode with a wavelength of 660 nm, falling under Laser class 1. The device offers a high measuring frequency of 2500 Hz and a quick response delay of 0.8 ms. It provides both analog and RS485 output circuits, with output signals ranging from 4 to 20 mA and 0 to 10 VDC. The sensor is built to withstand harsh conditions with IP 67 protection class, operating temperatures from -10 to +50 °C, and is resistant to vibration and shock as per IEC standards. The compact aluminum housing with a glass front measures 26 mm in width, 74 mm in height, and 55 mm in depth, and it connects via an M12 8-pin connector.
- Type:
- Distance measuring
- Version:
- OM70 laser line
- Measuring distance Sd:
- 50 250 mm
- Measuring range Mr:
- 200 mm
- Sweet spot:
- 180 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 1.4 6.3 µm
- Repeat accuracy:
- 0.3 2 µm
- Linearity error:
- ± 0.09 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,025 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 170 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
