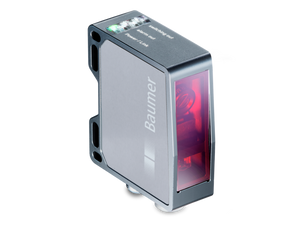

The Baumer OM70-L0600.HH0500.VI 11112065 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 100 to 600 mm and a measuring range of 500 mm, with a resolution between 3 and 24 µm and repeat accuracy from 1 to 9 µm. The device is equipped with a pulsed red laser diode, operating at a wavelength of 660 nm and classified as Laser class 1. It offers a fast response delay of 0.8 ms and a high measuring frequency of 2500 Hz. This sensor includes a touch display and RS485 for adjustments, along with LED indicators for power and output status. It supports both analog and RS485 digital outputs, providing signals from 4 to 20 mA or 0 to 10 VDC, and features push-pull switching output. The unit is built to withstand harsh environments with IP 67 protection, operating temperatures from -10 to +50 °C, and is resistant to vibration and shock as per IEC standards. The compact design measures 26 mm in width, 74 mm in height, and 55 mm in depth, housed in an aluminum casing with a glass front. It connects via an M12 8-pin connector and weighs 130 g. Additional features include short circuit and reverse polarity protection, ensuring durability and reliability in demanding settings.
- Type:
- Distance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 100 600 mm
- Measuring range Mr:
- 500 mm
- Sweet spot:
- 500 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 3 24 µm
- Repeat accuracy:
- 1 9 µm
- Linearity error:
- ± 0.12 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,04 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 170 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
