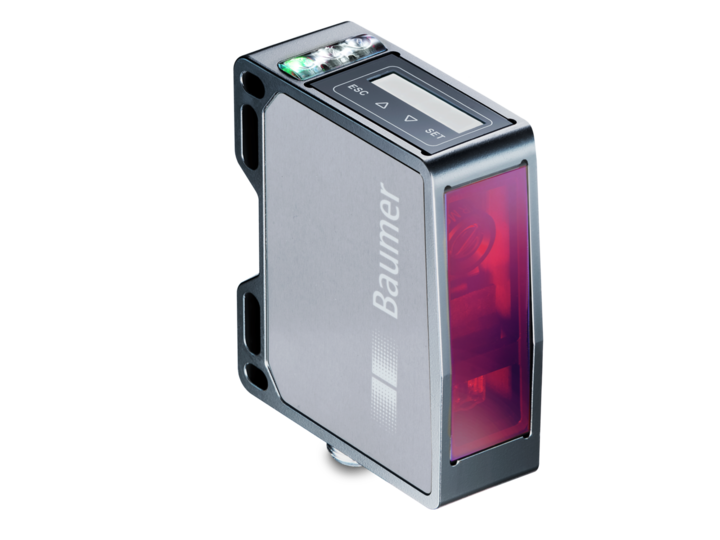

Baumer OM70-L0600.HV0500.VI 11112067
Baumer
The Baumer OM70-L0600.HV0500.VI 11112067 is a high-precision distance measuring sensor from the OM70 laser line basic series, designed for a measuring distance of 100 to 600 mm and a measuring range of 500 mm. It features a resolution of 3 to 24 µm and repeat accuracy of 1 to 9 µm, with a linearity error of ±0.12% of the measuring range. The device is equipped with a touch display and RS485 for adjustments, and uses a pulsed red laser diode with a wavelength of 660 nm, classified as Laser class 2. It offers a fast response delay of 0.8 ms and a measuring frequency of 2500 Hz. The sensor operates on a voltage supply range of 15 to 28 VDC and includes both analog and RS485 output circuits, with output signals of 4 to 20 mA and 0 to 10 VDC. It features robust construction with an aluminum housing, glass optics, and an IP67 protection class, ensuring durability in harsh environments. The sensor's dimensions are 26 mm in width, 74 mm in height, and 55 mm in depth, and it weighs 130 g. Additional features include short circuit and reverse polarity protection, ambient light immunity of less than 170 kLux, and resistance to vibration and shock as per IEC standards.
- Type:
- Distance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 100 600 mm
- Measuring range Mr:
- 500 mm
- Sweet spot:
- 500 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 3 24 µm
- Repeat accuracy:
- 1 9 µm
- Linearity error:
- ± 0.12 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,04 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 170 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
