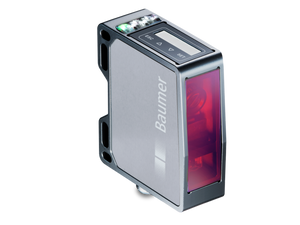

The Baumer OM70-L1000.HV0500.EK 11220190 is a high-precision distance measuring device featuring the OM70 laser line technology. It offers a measuring distance of 100 to 1000 mm and a measuring range of 900 mm, with a sweet spot at 500 mm. This model is equipped with a webserver and Ethernet TCP/IP for easy adjustments. It includes multiple LED indicators for power, output, and Ethernet link status. The device boasts a resolution of 3 to 63 µm and repeat accuracy of 1 to 32 µm, with a linearity error of ±0.19% Mr. It operates with a pulsed red laser diode at a wavelength of 660 nm and is classified as Laser class 2. The response delay is minimal at 0.8 ms, and it can measure at frequencies up to 2000 Hz. Power requirements are 15 to 28 VDC with a maximum current consumption of 75 mA. Output options include analog and digital signals, and it features push-pull switching output with short circuit and reverse polarity protection. The device is compact, measuring 26 mm in width, 74 mm in height, and 55 mm in depth, and is housed in an aluminum casing with a glass front. It supports M12 8-pin and 4-pin connectors and weighs 135 g. Designed to withstand harsh environments, it offers IP 67 protection and can operate in temperatures ranging from -10 to +50 °C. It is also resistant to ambient light up to 100 kLux and can endure significant vibration and shock as per IEC standards.
- Type:
- Distance measuring
- Version:
- OM70 laser line
- Measuring distance Sd:
- 100 1000 mm
- Measuring range Mr:
- 900 mm
- Sweet spot:
- 500 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 3 63 µm
- Repeat accuracy:
- 1 32 µm
- Linearity error:
- ± 0.19 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,065 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2000 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
