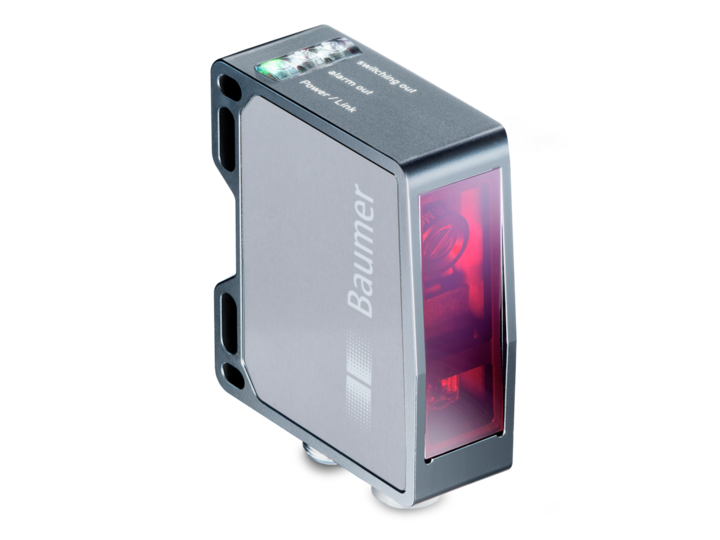

The Baumer OM70-L1000.HV1000.EK 11216508 is a high-performance distance measuring sensor designed for precision. It features a measuring distance of 100 to 1000 mm and a measuring range of 900 mm, with a sweet spot at 1000 mm. This device offers high resolution (3 to 63 µm) and repeat accuracy (1 to 32 µm), ensuring reliable measurements. It includes a pulsed red laser diode light source with a wavelength of 660 nm and is classified as a Laser Class 2 device. The sensor is equipped with multiple outputs including analog and digital signals, and supports Ethernet TCP/IP for easy adjustments via a webserver. It operates on a voltage supply range of 15 to 28 VDC and has a robust aluminum housing with IP67 protection, making it suitable for challenging industrial environments. The sensor also features shock and vibration resistance, ambient light immunity, and temperature stability, ensuring reliable operation under varying conditions.
- Type:
- Distance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 100 1000 mm
- Measuring range Mr:
- 900 mm
- Sweet spot:
- 1000 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 3 63 µm
- Repeat accuracy:
- 1 32 µm
- Linearity error:
- ± 0.19 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,065 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2000 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
