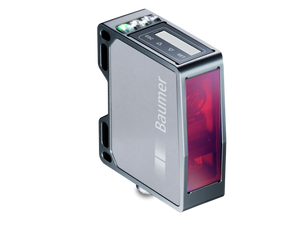

The Baumer OM70-L1500.HH1500.EK 11216517 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 150 to 1500 mm and a measuring range of 1350 mm, with a sweet spot at 1500 mm. The device offers high resolution (13 to 125 µm) and repeat accuracy (3 to 63 µm), ensuring reliable measurements. It utilizes a pulsed red laser diode with a wavelength of 660 nm and is classified as a safe Laser class 1 device. This sensor is equipped with multiple outputs including analog and digital signals (4 to 20 mA, 2 to 10 mA, 0 to 10 VDC, 0 to 5 VDC) and features a push-pull switching output. It supports Ethernet TCP/IP for easy integration and can be configured via a webserver. The sensor is housed in a durable aluminum casing with glass optics, measuring 26 mm in width, 74 mm in height, and 55 mm in depth, and weighs 135 g. It operates effectively within a temperature range of -10 to +50 °C and is protected against environmental conditions with an IP 67 rating, ensuring performance in harsh environments. The sensor also includes safety features such as short circuit and reverse polarity protection. For connectivity, it uses M12 8-pin and M12 4-pin connectors. The device is designed to withstand significant ambient light (up to 35 kLux) and mechanical stresses including vibrations and shocks as specified by IEC standards.
- Usage:
- Extension cord for Connector type M8
- Connection type (head 1):
- Connector female
- Dimension (head 1):
- M8
- Type (head 1):
- Angled
- Connection type (head 2):
- Connector male
- Dimension (head 2):
- M8
- Type (head 2):
- Straight
- Particular characteristics:
- Suitable for flexible cable carriers
- Shielding:
- Unshielded
- Material cable jacket:
- PUR halogen-free
- Length:
- 1 m
- Number of positions:
- 3 pins
- Protection class:
- IP 65/67/68
- Datasheet:
- View;
