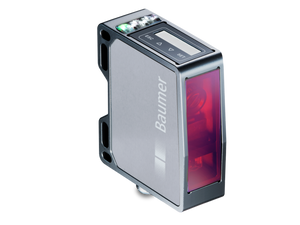

The Baumer OM70-L1500.HV1500.EK 11216510 is a high-precision distance measuring device featuring a laser line basic version with a measuring distance of 150 to 1500 mm and a measuring range of 1350 mm. It offers a resolution between 13 to 125 µm and repeat accuracy from 3 to 63 µm. The device includes a pulsed red laser diode light source with a wavelength of 660 nm and operates within a laser class 2 safety standard. It supports various output signals including analog and digital formats, and features multiple LED indicators for power, output, and Ethernet connection status. The unit is equipped with Ethernet TCP/IP for adjustments, and its robust design includes an aluminum housing, glass optics, and IP67 protection class, making it suitable for challenging industrial environments. It operates effectively within a temperature range of -10 to +50 °C and is resistant to vibration and shock as per IEC standards. The device also offers features like short circuit and reverse polarity protection, enhancing its reliability and durability in diverse applications.
- Type:
- Distance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 150 1500 mm
- Measuring range Mr:
- 1350 mm
- Sweet spot:
- 1500 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 13 125 µm
- Repeat accuracy:
- 3 63 µm
- Linearity error:
- ± 0.32 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,100 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2000 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 35 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
