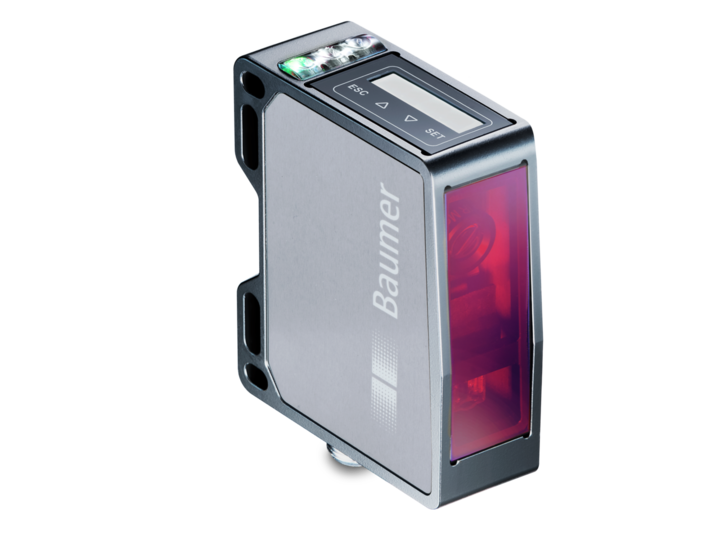

The Baumer OM70-L1500.HV1500.VI 11112015 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance range of 150 to 1500 mm and a measuring frequency of 2500 Hz, ensuring rapid and accurate data capture. The device is equipped with a pulsed red laser diode with a wavelength of 660 nm and operates within a laser class 2 safety standard. It offers a resolution between 13 to 125 µm and repeat accuracy from 3 to 63 µm, with a linearity error of ±0.32% of the measuring range. This sensor includes a touch display and RS485 for easy adjustment, along with LED indicators for power and output status. It supports both analog and RS485 digital outputs, providing versatile connectivity options. The robust aluminum housing and glass optics are designed to withstand harsh environments, evidenced by its IP67 protection class and resistance to ambient light up to 35 kLux. Additional features include short circuit and reverse polarity protection, a wide operating temperature range of -10 to +50 °C, and compliance with vibration and shock standards IEC 60068-2-6:2008 and IEC 60068-2-27:2009, respectively. The sensor's compact dimensions and lightweight design make it suitable for integration into various setups without compromising performance.
- Type:
- Distance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 150 1500 mm
- Measuring range Mr:
- 1350 mm
- Sweet spot:
- 1500 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 13 125 µm
- Repeat accuracy:
- 3 63 µm
- Linearity error:
- ± 0.32 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,100 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 35 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
