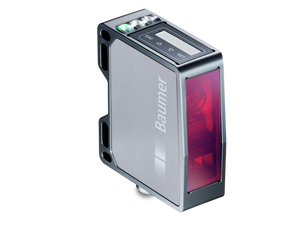

The Baumer OM70-P0600.HH0500.EK 11216518 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 100 to 600 mm and a sweet spot at 500 mm, ensuring accurate measurements within this range. The device offers a resolution between 3 to 24 µm and repeat accuracy from 1 to 9 µm, with a linearity error of ±0.12% of the measuring range. It utilizes a pulsed red laser diode with a wavelength of 660 nm, classified as Laser class 1, ensuring safe operation. This sensor is equipped with multiple outputs including analog and digital signals (4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC) and features a push-pull switching output. It supports Ethernet TCP/IP for easy integration into networks and can be configured via a webserver. The device is housed in a robust aluminum casing with glass optics, measuring 26 mm in width, 74 mm in height, and 55 mm in depth, and weighs 135 g. For durability and reliability in harsh environments, it offers IP 67 protection against dust and water, operates within a temperature range of -10 to +50 °C, and can withstand ambient light up to 300 kLux. The sensor also includes safety features such as short circuit and reverse polarity protection. Vibration and shock resistance are compliant with IEC standards, ensuring performance stability under mechanical stresses.
- Type:
- Distance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 100 600 mm
- Measuring range Mr:
- 500 mm
- Sweet spot:
- 500 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 3 24 µm
- Repeat accuracy:
- 1 9 µm
- Linearity error:
- ± 0.12 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,04 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2000 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 300 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
