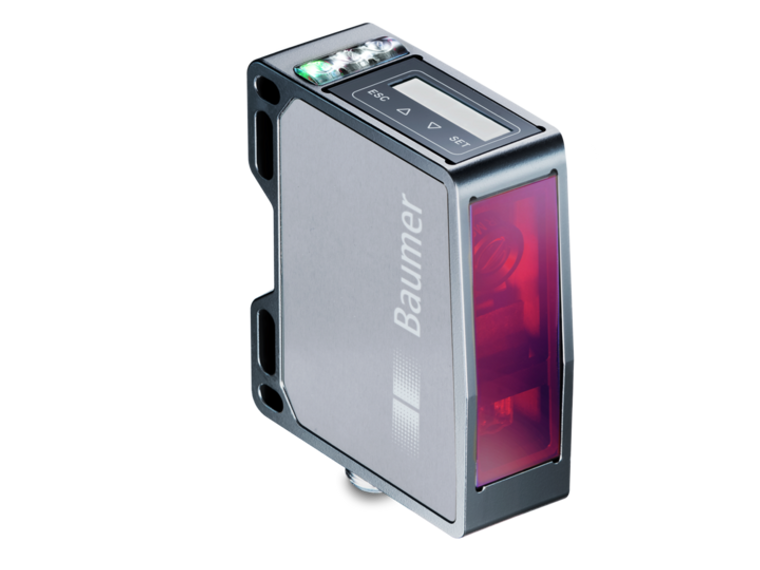

The Baumer OM70-P0600.HH0500.VI 11112064 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 100 to 600 mm and a sweet spot at 500 mm, ensuring accurate measurements within this range. The device is equipped with a touch display and RS485 for easy adjustment, and it uses a pulsed red laser diode with a wavelength of 660 nm, falling under Laser class 1 for safety. It offers a high measuring frequency of 2500 Hz and a quick response delay of 0.8 ms. The sensor's output options include analog and RS485, with signals ranging from 4 to 20 mA or 0 to 10 VDC. It is built to withstand harsh environments with IP 67 protection, operating temperatures from -10 to +50 °C, and is resistant to vibration and shock as per IEC standards. The compact aluminum housing with a glass front measures 26 mm in width, 74 mm in height, and 55 mm in depth, making it suitable for tight spaces. The sensor also features short circuit and reverse polarity protection, enhancing its durability and reliability in demanding settings.
- Type:
- Distance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 100 600 mm
- Measuring range Mr:
- 500 mm
- Sweet spot:
- 500 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 3 24 µm
- Repeat accuracy:
- 1 9 µm
- Linearity error:
- ± 0.12 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,04 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 300 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
