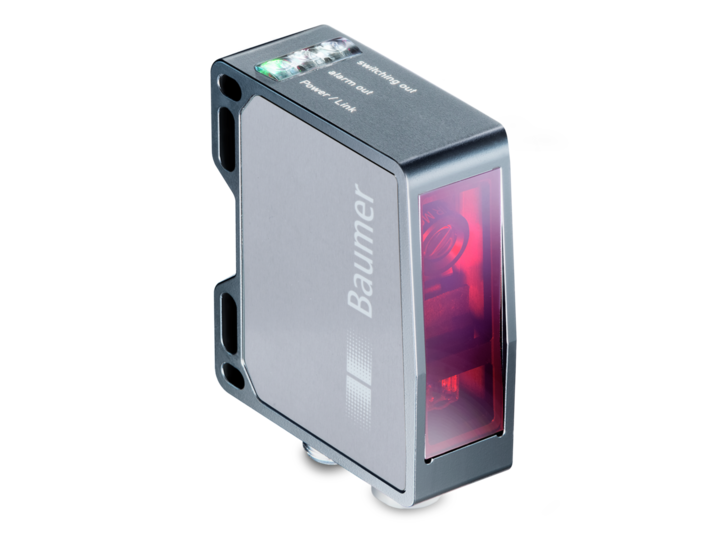

The Baumer OM70-P0600.HV0500.EK 11186912 is a high-precision distance measuring device featuring a laser point for targeted measurement. It offers a measuring distance of 100 to 600 mm and a sweet spot at 500 mm, ensuring accurate readings. The device is equipped with a webserver and Ethernet TCP/IP for easy adjustments, and it features multiple LED indicators for power, output, and Ethernet link status. With a resolution of 3 to 24 µm and repeat accuracy of 1 to 9 µm, it delivers reliable performance. The laser diode operates at a wavelength of 660 nm and is classified as Laser class 2. It supports a high measuring frequency of 2000 Hz and has a quick response delay of 0.8 ms. The device is powered by a voltage supply range of 15 to 28 VDC and includes both analog and digital output circuits. It is designed with a durable aluminum housing, glass optics, and is IP 67 rated for protection against dust and water. Suitable for a variety of industrial applications, it operates within a temperature range of -10 to +50 °C and is resistant to ambient light, vibrations, and shocks.
- Type:
- Distance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 100 600 mm
- Measuring range Mr:
- 500 mm
- Sweet spot:
- 500 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 3 24 µm
- Repeat accuracy:
- 1 9 µm
- Linearity error:
- ± 0.12 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,04 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2000 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 300 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
