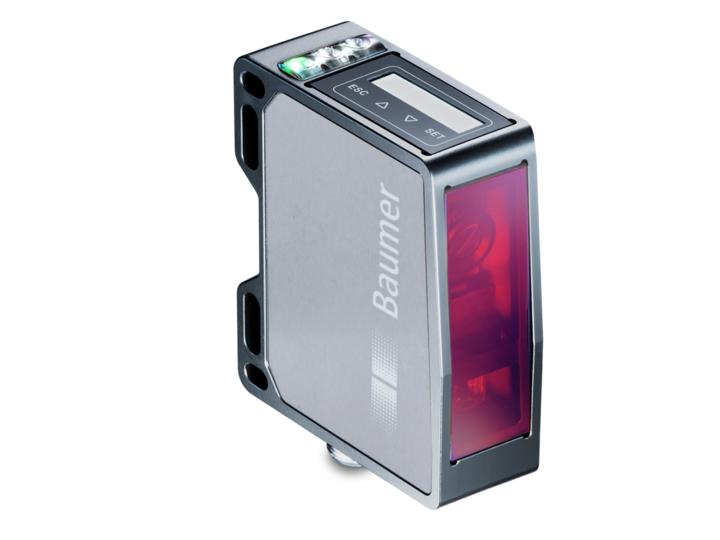

Baumer OM70-P1000.HH1000.VI 11195787
Baumer
$3,695.00
The Baumer OM70-P1000.HH1000.VI 11195787 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance range of 100 to 1000 mm and a measuring frequency of 2500 Hz, ensuring rapid and accurate data capture. The device is equipped with a pulsed red laser diode with a wavelength of 660 nm, falling under Laser class 1 for safe operation. It offers a resolution between 3 and 63 µm and repeat accuracy from 1 to 32 µm, with a linearity error of ±0.19% of the measuring range. The sensor includes a touch display and RS485 for easy adjustment, along with LED indicators for power and output status. It supports both analog and RS485 digital outputs, providing versatile connectivity options. The robust aluminum housing and glass optics are designed to withstand harsh environments, certified with IP67 protection and capable of operating in temperatures from -10 to +50 °C. Additional features include shock and vibration resistance, short circuit and reverse polarity protection, and an ambient light immunity of less than 100 kLux. This sensor is ideal for precise distance measurement in a variety of industrial settings.
- Type:
- Distance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 100 1000 mm
- Measuring range Mr:
- 900 mm
- Sweet spot:
- 1000 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 3 63 µm
- Repeat accuracy:
- 1 32 µm
- Linearity error:
- ± 0.19 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,065 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
