Baumer OM70-P1000.HV0700.EK 11220198
Baumer

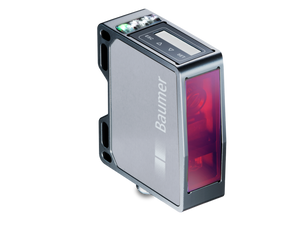

The Baumer OM70-P1000.HV0700.EK 11220198 is a high-precision distance measuring sensor from the OM70 laser point series, designed for a measuring distance of 100 to 1000 mm with a sweet spot at 700 mm. It features a resolution of 3 to 63 µm and repeat accuracy of 1 to 32 µm, ensuring high accuracy with a linearity error of ±0.19% of the measuring range. The device is equipped with a pulsed red laser diode light source, operating at a wavelength of 660 nm and classified as Laser class 2. It offers multiple outputs including analog and digital signals, and supports Ethernet TCP/IP for easy adjustments via a webserver. The sensor is housed in a robust aluminum casing with glass optics, measuring 26 mm in width, 74 mm in height, and 55 mm in depth, and is IP67 rated for dust and water resistance. It operates effectively within a temperature range of -10 to +50 °C and is designed to withstand harsh environmental conditions with vibration and shock resistance as per IEC standards. The sensor also features comprehensive protection against short circuits and reverse polarity, enhancing its reliability and durability in industrial applications.
- Usage:
- Connecting cable for Connector type M12
- Connection type (head 1):
- Connector female
- Dimension (head 1):
- M12
- Type (head 1):
- Angled
- Connection type (head 2):
- Free cable end
- Particular characteristics:
- Suitable for flexible cable carriers
- Shielding:
- Unshielded
- Material cable jacket:
- PUR halogen-free
- Length:
- 2 m
- Number of positions:
- 3 pins
- Protection class:
- IP 65/67/68;
