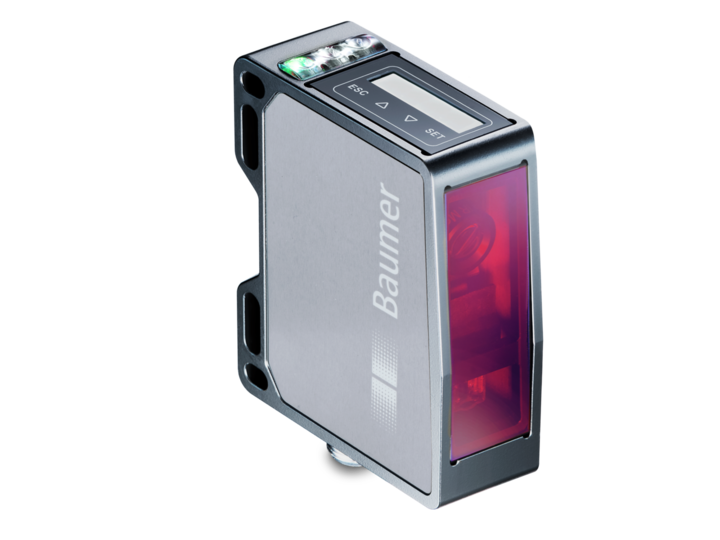

The Baumer OM70-P1500.HH1500.VI 11111994 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 150 to 1500 mm and a measuring range of 1350 mm with a sweet spot at 1500 mm. The device offers high resolution between 13 to 125 µm and repeat accuracy from 3 to 63 µm, ensuring reliable measurements. It includes a touch display and RS485 for easy adjustment, along with LED indicators for power and output status. The sensor uses a pulsed red laser diode with a wavelength of 660 nm and is classified as a safe Laser class 1 device. It operates at a high measuring frequency of 2500 Hz and has a quick response delay of 0.8 ms. The sensor is built to withstand harsh conditions with IP 67 protection, operating temperatures from -10 to +50 °C, and is resistant to vibration and shock as per IEC standards. It is housed in a durable aluminum casing with a glass front and connects via an M12 8-pin connector.
- Type:
- Distance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 150 1500 mm
- Measuring range Mr:
- 1350 mm
- Sweet spot:
- 1500 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 13 125 µm
- Repeat accuracy:
- 3 63 µm
- Linearity error:
- ± 0.32 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,100 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 35 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
