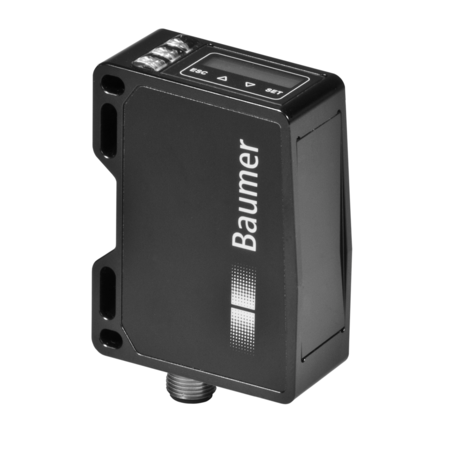

The Baumer OM70-X0500.HI0660.VI 11112069 is a high-precision distance measuring device from the OM70 multi-spot series, designed for a measuring distance of 100 to 500 mm and a width range of 13 to 66 mm. It features a touch display and RS485 for adjustments, a pulsed red laser diode light source with a wavelength of 660 nm, and operates within a laser class 2 safety standard. The device offers a resolution of 4 to 25 µm and repeat accuracy of 4 to 20 µm, with a linearity error of ±100 µm. It has a fast response time of 1.3 ms and a high measuring frequency of 1540 Hz. The unit is powered by a 15 to 28 VDC supply, has a maximum current consumption of 120 mA, and provides both analog and RS485 output options. It is built with a durable aluminum housing, glass optics, and is equipped with an M12 8-pin connector. The device is designed to withstand harsh environments with IP67 protection, operating temperatures from -10 to +50 °C, and robust resistance to vibration and shock as per IEC standards.
- Type:
- Distance measuring
- Version:
- OM70 multi-spot
- Measuring distance Sd:
- 100 500 mm
- Measuring range (width):
- 13 66 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Resolution:
- 4 25 µm
- Repeat accuracy:
- 4 20 µm 1) 2) 4) 5)
- Linearity error:
- ± 100 µm 1) 2) 4) 6)
- Beam type:
- Multi-spot
- Temperature drift:
- ± 0,04 % Sde/K 1) 2) 4)Light source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response time / release time:
- 1.3 ms 2) 3)
- Measuring frequency:
- 1540 Hz 2) 3)
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 120 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Ambient light immunity:
- < 35 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -25 +75 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1.5 mm p-p at f = 10 - 57 Hz, 10 cycles per axis 10 g at f = 58 - 2000 Hz, 10 cycles per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms resp. 100 g / 6 ms, 10 jolts per axis and direction 100 g / 2 ms, 5000 jolts per axis and direction
