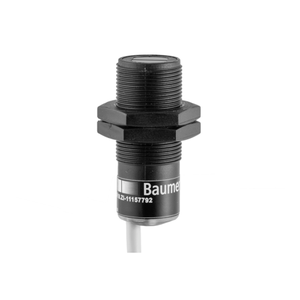

Baumer OR18.TI-ZZZZ.71CV 11157823 is a through beam sensor designed as an emitter with a pulsed infrared diode light source. It features a nominal range of 20 m and an actual range of 13 m. The sensor operates within a voltage supply range of 12 to 30 VDC and has a typical current consumption of 30 mA. It includes a green LED for power indication but does not allow for emission power adjustment. The sensor is cylindrical, threaded, and measures 18 mm in width and 44.8 mm in length, with a housing made of ABS plastic and PMMA optics. It is equipped with a 4-pin, 2 m cable connection and operates in temperatures ranging from -25 to +55 °C. The sensor is protected against reverse polarity and is IP 67 certified for dust and water resistance.
- Type:
- Through beam sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed infrared diode
- Actual range Sb:
- 13 m
- Nominal range Sn:
- 20 m
- Power on indication:
- LED green
- Emission power adjustment:
- No
- Wave length:
- 880 nm
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 44.8 mm
- Design:
- Cylindrical threaded
- Housing material:
- Plastic (ABS TERLURAN)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +55 °C
- Protection class:
- IP 67
- Datasheet:
- View
