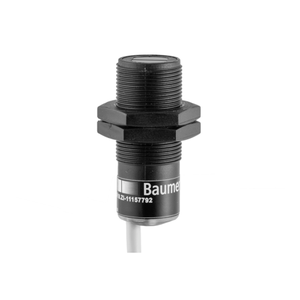

Baumer OR18.ZI-PW1Z.71OV/0010_B013 11157796 is an intensity difference sensor with a sensing distance of less than 300 mm. It features a pulsed infrared diode light source with a wavelength of 880 nm and a fast response time of less than 1 ms. The sensor has no sensing distance adjustment but includes suppression of reciprocal influence. It operates with a voltage supply range of 12 to 30 VDC and has a typical current consumption of 30 mA. The output function can be set to light or dark operate, and it includes a PNP output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor is housed in a cylindrical threaded plastic body with a PMMA front optics, measures 18 mm in width and 44.8 mm in length, and is equipped with a flylead connector M12 4-pin. It is rated IP 67 for protection against dust and water ingress and can operate in temperatures ranging from -25 to +55 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- < 300 mm
- Alignment / soiled lens indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- No
- Suppression of reciprocal influence:
- YesLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 44.8 mm
- Design:
- Cylindrical threaded
- Housing material:
- Plastic (ABS TERLURAN)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M12 4 pin, L=100 mm
- Protection class:
- IP 67
- Operating temperature:
- -25 +55 °C
- Datasheet:
- View
