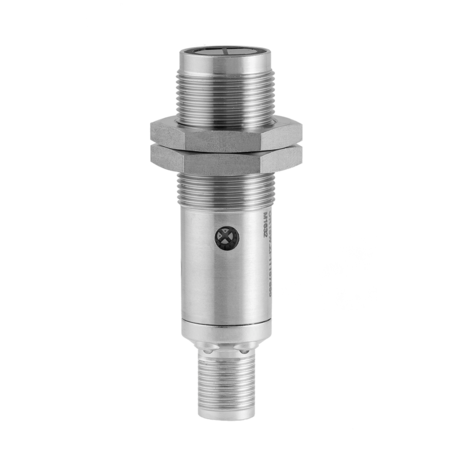

The Baumer OR18W.ZI-PW1P.9VO/B013 11157847 is an intensity difference sensor with a washdown design, suitable for harsh environments with its IP 67/69K protection class. It features a sensing distance of less than 300 mm and includes a green LED for alignment or soiled lens indication, and a yellow LED for output status. The sensor is equipped with a potentiometer for precise sensing distance adjustment and offers suppression of reciprocal influence. It utilizes a pulsed infrared diode with a wavelength of 880 nm and boasts a quick response and release time of less than 1 ms. Operating on a voltage supply range of 12 to 30 VDC, it has a maximum current consumption of 40 mA. The output functions can operate in both light and dark conditions, supported by a PNP output circuit with a maximum output current of 100 mA. It also includes short circuit and reverse polarity protection. The sensor's cylindrical threaded design, made from durable stainless steel 1.4404 (V4A) and PMMA front optics, measures 18 mm in width and 67.2 mm in length. It connects via an M12 4-pin connector and operates effectively within a temperature range of -25 to +55 °C.
- Type:
- Intensity difference
- Special type:
- Washdown design
- Sensing distance Tw:
- < 300 mm
- Alignment / soiled lens indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Potentiometer, 270°
- Suppression of reciprocal influence:
- YesLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 67.2 mm
- Design:
- Cylindrical threaded
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67/69K
- Operating temperature:
- -25 +55 °C
