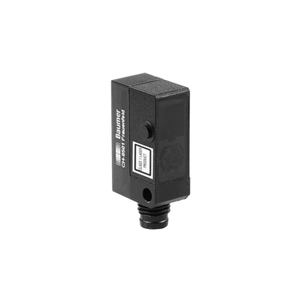

The Baumer OSDK 10D9005 10165142 is a through beam laser sensor designed for precise detection tasks. It features an emitter with a pulsed red laser diode light source, offering a nominal range of 10 meters and an actual range of 8 meters. This sensor operates within a voltage supply range of 11 to 30 VDC and has a typical current consumption of 25 mA. It is built with a durable plastic (ASA) housing and PMMA front optics, measuring 10.4 mm in width, 27 mm in height, and 16.3 mm in depth. The device is equipped with a 4-pin, 2-meter cable for connectivity and operates effectively in temperatures ranging from -10 to +50 °C. Safety and durability are ensured with reverse polarity protection, a laser class of 1, and an IP 65 protection class, making it suitable for various industrial applications.
- Type:
- Through beam laser sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 8 m
- Nominal range Sn:
- 10 m
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 650 nm
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 16.3 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -10 +50 °C
- Protection class:
- IP 65
