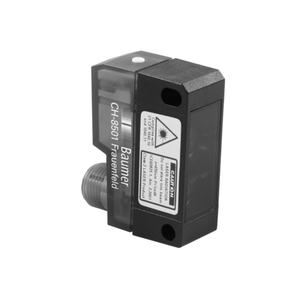

The Baumer OZDK 14N1901/S14 11001323 is a diffuse contrast sensor with a sensing distance ranging from 20 to 300 mm and an optimum operating distance of 40 to 60 mm. It features high repeat accuracy of less than 0.2 mm at laser focus and a quick response time of less than 0.15 ms. The sensor is equipped with a pulsed red laser diode, operating in the 650 nm wavelength, and falls under Laser class 2. It includes a green LED for power indication and a yellow LED for light indication, with a flashing light indicator for alignment or soiled lens detection. Sensitivity can be adjusted via Teach-in. The device supports a voltage supply range of 10 to 30 VDC, with typical current consumption of 25 mA and a maximum of 35 mA. It offers short circuit and reverse polarity protection, outputs through an NPN circuit with a maximum output current of 100 mA, and connects via an M12 4-pin connector. The sensor's compact, rectangular housing is made from durable plastic materials like ASA and MABS, with a PMMA front optics, and it is designed to withstand harsh environments with an IP 67 protection rating and an operating temperature range of -10 to +50 °C.
- Type:
- Diffuse contrast sensor
- Sensing distance Tw:
- 20 300 mm
- Optimum operating distance:
- 40 60 mm
- Repeat accuracy:
- < 0.2 mm at laser focus
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Distance to focus:
- 115 mmLight source=Pulsed red laser diode
- Laser class:
- 2
- Wave length:
- 650 nm
- Response time / release time:
- < 0.15 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.2 VDC
- Output function:
- Light operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
