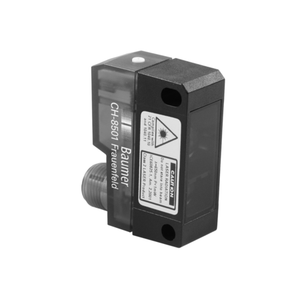

The Baumer OZDK 14P1901/S14 11001328 is a diffuse contrast sensor with a sensing distance of 20 to 300 mm and an optimum operating distance of 40 to 60 mm. It features high repeat accuracy of less than 0.2 mm at laser focus and a quick response time of less than 0.15 ms. The sensor is equipped with a pulsed red laser diode, laser class 2, and a wavelength of 650 nm. It offers various indicators including a green LED for power on, a flashing light for alignment or soiled lens, and a yellow LED light indicator. Sensitivity can be adjusted via Teach-in, and it has a focus distance of 115 mm. The sensor operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 25 mA and a maximum of 35 mA. It features PNP output circuit with light operate function, and includes short circuit and reverse polarity protection. The compact design measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a housing made of plastic (ASA, MABS) and a PMMA front optics. It includes an M12 4-pin connector, is rated IP 67 for protection, and can operate in temperatures ranging from -10 to +50 °C.
- Type:
- Diffuse contrast sensor
- Sensing distance Tw:
- 20 300 mm
- Optimum operating distance:
- 40 60 mm
- Repeat accuracy:
- < 0.2 mm at laser focus
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Distance to focus:
- 115 mmLight source=Pulsed red laser diode
- Laser class:
- 2
- Wave length:
- 650 nm
- Response time / release time:
- < 0.15 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.2 VDC
- Output function:
- Light operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
