Baumer R600V.DAE0-CXZZ.93$/S004_P036 11209335

Baumer
SKU:
11209335
$1,756.24
(No reviews yet) Write a Review
Condition:
New
Current Stock:

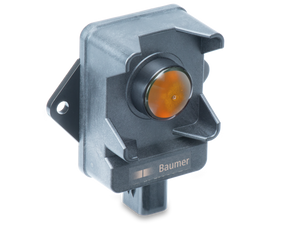

The Baumer R600V.DAE0-CXZZ.93$/S004_P036 11209335 is a high-performance sensor designed for precise object detection and suppression in challenging environments. It features a scanning range of 0.3 to 5 meters and is equipped with advanced technology to suppress interference from unwanted objects. The sensor offers a repeat accuracy of 6.5 mm and maintains stability with a temperature drift of ? ± 3% Sd. It operates on a carrier frequency of 122 to 123 GHz with a bandwidth of 1 GHz and utilizes FMCW modulation for reliable performance. This robust unit is housed in a durable cubic casing made from polyamide and aluminum, measuring 97 mm in width, 84 mm in height, and 42.5 mm in depth. It is designed to withstand harsh conditions, featuring an IP 69K and IP 68 protection rating, making it resistant to dust, high-pressure water jets, and submersion. The sensor can operate in temperatures ranging from -40 to +70 °C and is equipped with shock, vibration, and particle impact resistance, ensuring reliability in mobile machinery and agricultural applications. Connectivity is facilitated through a CAN output circuit with options for 5 V and CAN SAE J1939 protocols, and it supports a baud rate of 250 kBaud, expandable to 500 kBaud. The sensor also features short circuit and reverse polarity protection, enhancing its operational safety. Installation is straightforward with M6 mounting holes and an AMPSEAL 16 4-pin connector, ensuring secure and reliable integration into various systems. Approved and certified across multiple international standards, including FCC, EN, and ISO, this sensor is ideal for developers needing a reliable solution for complex environments where precision and durability are critical.
Special type:
Suppression of interfering objects
Scanning range Sd:
0.3 … 5 m
Version:
Multi-object (ground & crop) Spray-drift suppression
Repeat accuracy:
6.5 mm
Temperature drift:
? ± 3 % Sd (Full Scale: ± 15 mm)
Power on indication:
LED green
Carrier frequency:
122 … 123 GHz
Band width:
1 GHz
Linearity error:
± 0.3 %
Modulation type:
FMCW
Transmitting power (EIRP):
< +20 dBm
Aperture angle:
6 °
MTTF:
> 126 years
Approvals/certificates:
FCC / CFR-47 part 15 (USA) RSS-210 Issue 10 (Canada) EN 305 550-1 V.1.2.1 (European Union) EN 305 550-2 V.1.2.1 (European Union) EN 61000-6-2 EN 61000-6-3 EN 50581 EN 13309 EN ISO 14982 ISO 13766
Voltage supply range +Vs:
9 … 32 VDC
Current consumption max. (no load):
160 mA
Baud rate:
250 kBaud (500 kBaud)
Output rate:
1 … 100 Hz
Short circuit protection:
Yes
Reverse polarity protection:
Yes, Vs to GND
Output circuit:
CAN (5 V), CAN SAE J1939
Design:
Cubic with M6 mounting holes
Housing material:
Polyamid (glass fiber reinforced), aluminium
Width / diameter:
97 mm
Height / length:
84 mm
Depth:
42.5 mm
Connection types:
Connector AMPSEAL 16 4 pin
Tightening torque max.:
15 Nm (min. 12 Nm)
Operating temperature:
-40 … +70 °C
Storage temperature:
-40 … +85 °C
Protection class:
IP 69K IP 68
Shock (semi-sinusoidal):
50 g / 11 ms, 18 jolts per axis and direction
Particle impact:
Gravel acc. to EN 11124-2: gravel pressure 2 bar, 2 cycles
Random vibration:
IEC 60068-2-64 Frequency : 5 … 2000 Hz Overall Grms: 11,55 Grms Axis: all 3 axes / 8h per axis
Salt environment:
ISO 9227 48h / +35 °C / pH=6,5 ... 7,2 / 5 % sodium chloride solution
Chemical resistance:
Brush test with typical chemicals in agriculture, mobile machines (soak 168h)
Combined environment:
32 VDC / -40 … +85 °C / 0 ... 70 % RH: 100 cycles / 12h per cycle
Datasheet:
View
Operating Manual:
View
