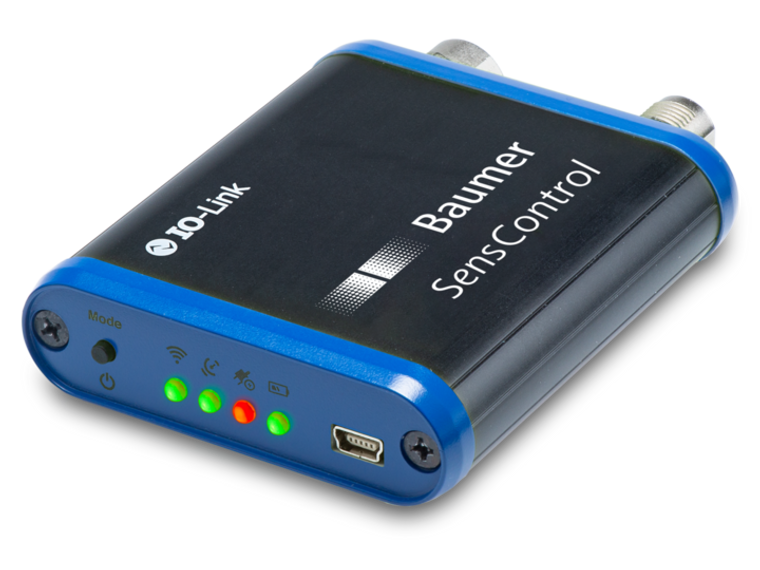

The Baumer SensControl / Wireless IO-Link Master 11214576 is a versatile device featuring a wireless IO-Link Master version with a clear LED display indicating WLAN mode, IO-Link communication, power supply, and battery load state. It supports multiple communication interfaces including WLAN, Bluetooth Smart, IO-Link, and a Micro SD card slot. The device is powered by an integrated battery and can also be charged via a USB Mini-B connection. It offers easy configuration through the SensControl App and operates within a voltage supply range of 19.2 to 28.8 VDC. The output current is 350 mA, and it includes M12 4-pin and 5-pin connectors for IO-Link Master and device connections respectively. The compact, cubic aluminum housing measures 70 mm in width, 20 mm in height, and 95 mm in depth, weighing 154 g. The operating time of the integrated battery is 3 hours at 2 W. For more details, you can view the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_SensControl-_EN_20231010_DS.pdf?mediaPK=9106048745502).
- Version:
- Wireless IO-Link Master
- LED display:
- WLAN mode, IO-Link communication, power supply, battery load state
- Communication interfaces:
- WLAN, Bluetooth Smart, IO-Link, Micro SD card
- Energy supply:
- Integrated battery, USB Mini-B
- Adjustment:
- SensControl App
- Voltage supply range +Vs:
- 19.2 28.8 VDC
- Output current:
- 350 mA
- Connection power supply:
- USB Mini-B
- Connection IO-Link Master:
- Connector M12 4 pin
- Connection IO-Link device:
- Socket M12 5 pin
- Operating time integrated battery:
- 3 h at 2 W
- Design:
- Cubic
- Housing material:
- Aluminum
- Width / diameter:
- 70 mm
- Height / length:
- 20 mm
- Depth:
- 95 mm
- Weight:
- 154 g
- Datasheet:
- View
