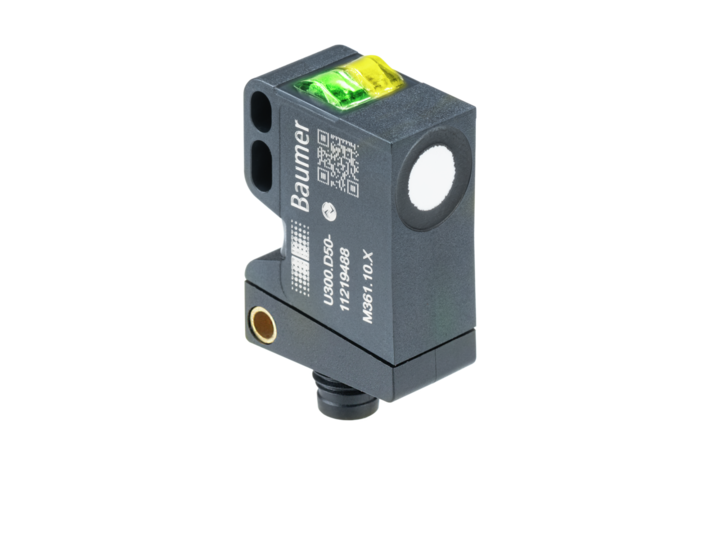

Baumer U300.D50-DPMJ.72N 11219488
Baumer
$422.80
The Baumer U300.D50-DPMJ.72N 11219488 is an ultrasonic sensor with a scanning range of 15 to 500 mm, featuring IO-Link dual channel technology for enhanced connectivity and control. It offers a repeat accuracy of 0.5 mm and a resolution of less than 0.3 mm, ensuring precise measurements. The sensor's response time is less than 40 ms, with a minimum of 16 ms, and it includes temperature and power-up drift compensation. Operating at a sonic frequency of 290 kHz, it allows for various adjustments including qTeach, line-Teach, and IO-Link. The device is equipped with LED indicators for power and operation status, and it supports a voltage supply range of 12 to 30 VDC. It features a voltage output circuit with a signal range of 0 to 10 V or 10 to 0 V, and includes safety features such as short circuit and reverse polarity protection. The sensor's compact, rectangular plastic housing measures 12.9 mm in width, 32.2 mm in height, and 23 mm in depth, and it connects via an M8 4-pin connector. Suitable for operating temperatures from -25 to +65 °C and certified with IP 67 protection class, this sensor is ideal for a wide range of industrial applications.
- Scanning range Sd:
- 15 500 mm
- Scanning range close limit Sdc:
- 15 500 mm
- Scanning range far limit Sde:
- 15 500 mm
- Version:
- IO-Link dual channel
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton/toff standard:
- < 40 ms
- Response time ton/toff min:
- < 16 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 290 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 35 mA
- Output circuit:
- Voltage output
- Baud rate:
- 38.4 kBaud (COM 2)
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Output current:
- 100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.2 mm
- Depth:
- 23 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
