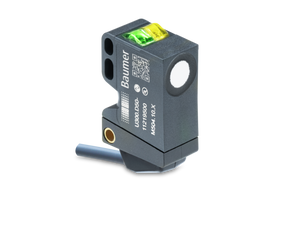

The Baumer U300.P50-GP2J.72CU is a high-precision, dual-channel IO-Link ultrasonic proximity switch designed for versatile applications. It features a scanning range of 15 to 500 mm with a typical hysteresis of 4% and repeat accuracy of 0.5 mm. The device operates with a sonic frequency of 290 kHz and offers multiple adjustment options including qTeach, line-Teach, and IO-Link. It includes yellow and red LEDs for output indication and a green LED for power status. The sensor is housed in a durable plastic casing and is equipped with a 4-pin, 2-meter cable. It supports a voltage supply range of 12 to 30 VDC and includes safety features such as short circuit and reverse polarity protection. The Baumer U300.P50-GP2J.72CU operates effectively within a temperature range of -25 to +65 °C and meets IP 67 standards for protection against dust and water ingress.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 15 500 mm
- Scanning range far limit Sde:
- 15 500 mm
- Version:
- IO-Link dual channel Multiplex version
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % Sde
- Power-up drift:
- Compensated after 15 min.
- Response time ton/toff min:
- < 16 ms
- Response time ton/toff standard:
- < 40 ms
- Sonic frequency:
- 290 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Output indicator:
- Yellow LED / red LED
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.2 mm
- Depth:
- 23 mm
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
