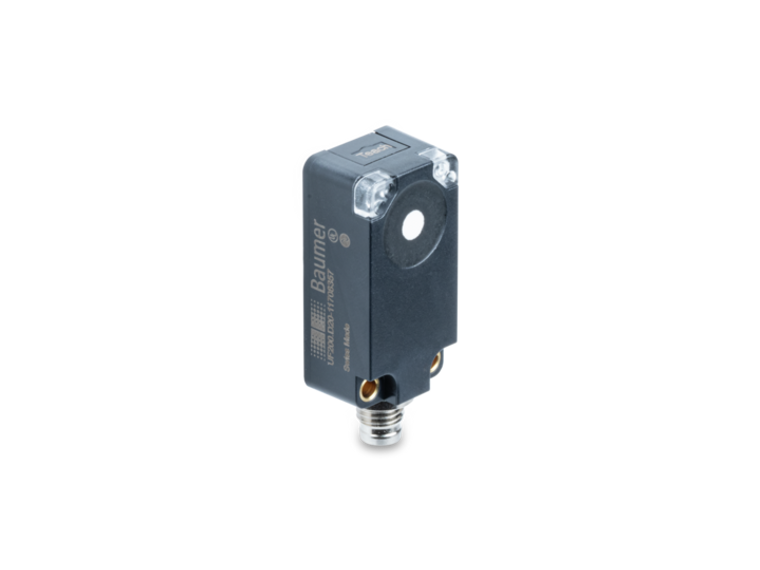

The Baumer UF200.R25-GP1J.72N is an ultrasonic sensor with a scanning range of 0 to 250 mm and a reflector position range of 10 to 250 mm. It features adjustable reflector ranges for both operating and limit conditions, and offers high precision with a repeat accuracy of 0.5 mm and a response time as low as 10 ms. This model supports IO-Link communication and includes various adjustment methods such as qTeach, line-Teach, and IO-Link. It is equipped with visual alignment aids through flashing light indicators and LED status lights for power and operation. The sensor operates at a sonic frequency of 370 kHz and has a minimal alignment error of less than 2°. It is designed for durability in a rectangular, plastic housing and can withstand operating temperatures from -25 to +65 °C. Safety features include short circuit and reverse polarity protection. The sensor connects via an M8 4-pin connector and is IP67 rated for protection against dust and water ingress.
- Scanning range Sd:
- 0 250 mm
- Reflector position Sde:
- 10 250 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Version:
- IO-Link
- Repeat accuracy:
- 0.5 mm
- Response time ton/toff min:
- < 10 ms
- Response time ton/toff standard:
- < 25 ms
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 370 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Alignment aid:
- Light indicator flashing
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 12 mA
- Output circuit:
- Push-pull
- Output current:
- <100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
