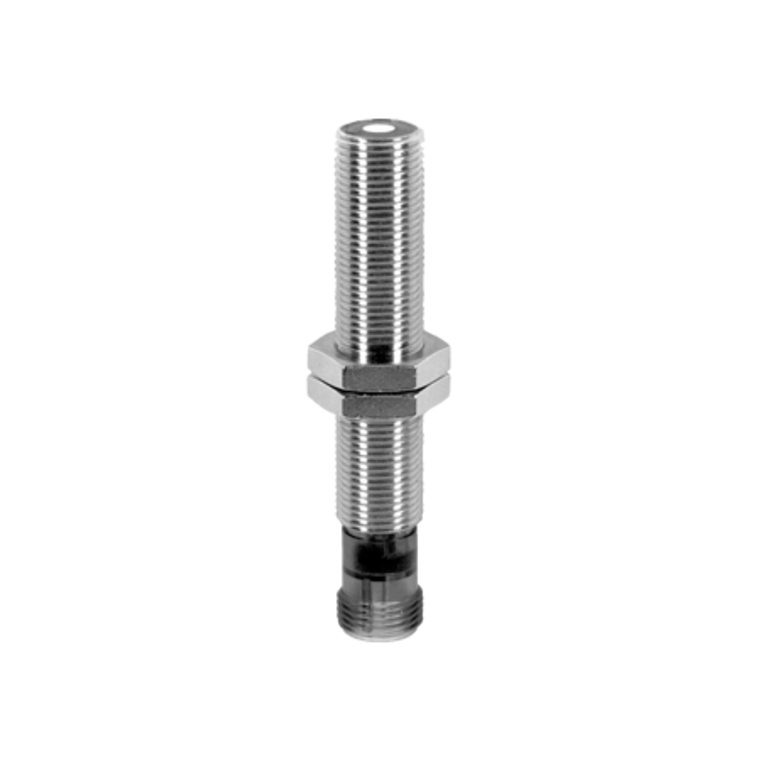

The Baumer UNAM 12P1912/S14 10156843 is a high-performance ultrasonic sensor with a scanning range of 40 to 400 mm and a far limit scanning range of 60 to 400 mm. It features a typical hysteresis of 4% Sde, repeat accuracy of 0.5 mm, and temperature drift of less than 0.18% Sde/K. The sensor has a response and release time of less than 25 ms, operates at a sonic frequency of 290 kHz, and includes external Teach-in for easy adjustment. It also offers a target indication flashing for alignment aid, a green LED output indicator, and operates on a voltage supply range of 12 to 30 VDC with a maximum current consumption of 35 mA. The output circuit is a PNP make function (NO) with an output current of 200 mA and a voltage drop of less than 2 VDC. It features short circuit and reverse polarity protection, a cylindrical threaded brass nickel-plated housing, and a connector M12 connection type. The sensor measures 12 mm in width/diameter and 70 mm in height/length, operates within a temperature range of -10 to +60 °C, and is rated IP 67 for protection against dust and water ingress.
- Scanning range Sd:
- 40 400 mm
- Scanning range far limit Sde:
- 60 400 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 25 ms
- Release time toff:
- < 25 ms
- Sonic frequency:
- 290 kHz
- Adjustment:
- External Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 12 mm
- Height / length:
- 70 mm
- Connection types:
- Connector M12
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
