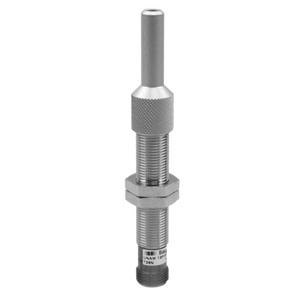

Baumer UNAM 12P1914/S14 10140060
Baumer
$717.00
The Baumer UNAM 12P1914/S14 10140060 is a high-performance ultrasonic sensor with a scanning range of 10 to 200 mm and a far limit scanning range of 30 to 200 mm. It features a typical hysteresis of 4% Sde and boasts a repeat accuracy of 0.5 mm. The sensor is designed to minimize temperature drift, which is less than 0.18% Sde/K, and has both response and release times under 10 ms. Operating at a sonic frequency of 380 kHz, it includes external Teach-in adjustment and a target indication flashing for easier alignment. The output is indicated by a green LED, and the sensor operates on a voltage supply range of 12 to 30 VDC with a maximum current consumption of 35 mA. It supports a PNP make function (NO) output circuit with an output current of 200 mA and a voltage drop of less than 2 VDC. The sensor is equipped with short circuit and reverse polarity protection, ensuring reliable operation. Its cylindrical threaded design is made from brass nickel-plated material, measuring 12 mm in width/diameter and 70 mm in height/length. The sensor connects via an M12 connector and operates within a temperature range of -10 to +60 °C. It is rated IP 67 for protection against dust and water ingress, making it suitable for a variety of industrial applications.
- Scanning range Sd:
- 10 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 10 ms
- Release time toff:
- < 10 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- External Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 12 mm
- Height / length:
- 70 mm
- Connection types:
- Connector M12
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
