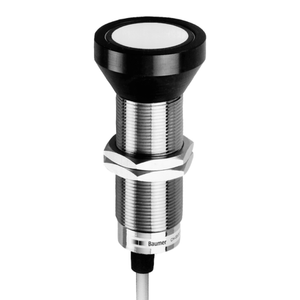

The Baumer UNAM 30N1104 10224448 is an ultrasonic sensor with a scanning range of 200 to 1500 mm and features a repeat accuracy of 1 mm. It operates at a sonic frequency of 200 kHz and includes a potentiometer for adjustments. The sensor provides visual alignment aid through target indication flashing and has a green LED output indicator. It supports a voltage supply range of 12 to 30 VDC and consumes a maximum of 30 mA with no load. The output circuit is an NPN make function (NO) with an output current of 200 mA. It offers short circuit and reverse polarity protection, and operates efficiently with a response and release time of less than 100 ms. The cylindrical, nickel-plated brass housing measures 30 mm in diameter and 70 mm in length, and it connects via a 2-meter cable. Suitable for operating temperatures from -25 to +60 °C, the sensor is IP 67 rated, ensuring protection against dust and water ingress.
- Scanning range Sd:
- 200 1500 mm
- Scanning range far limit Sde:
- 200 1500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 1 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 100 ms
- Release time toff:
- < 100 ms
- Sonic frequency:
- 200 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 70 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
