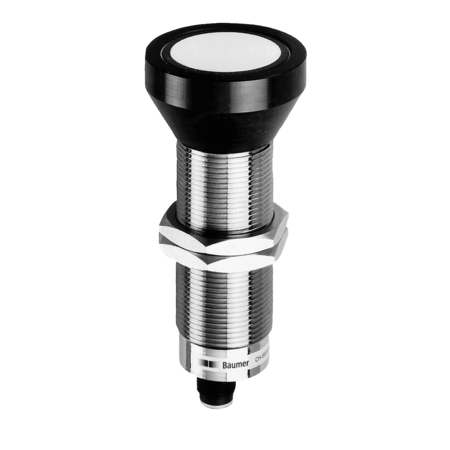

Baumer UNAM 50P1721/S14 10232549
Baumer
The Baumer UNAM 50P1721/S14 10232549 is an ultrasonic sensor designed for precise distance measurement with a scanning range of 350 to 2500 mm. It features a repeat accuracy of 1 mm and a response time of less than 160 ms. The sensor operates at a sonic frequency of 120 kHz and includes a potentiometer for easy adjustment. It offers synchronization capabilities and an alignment aid through target indication flashing. The output is indicated by a green LED and the sensor supports a PNP make function (NO) output circuit with a maximum output current of 200 mA. It is equipped with short circuit and reverse polarity protection, ensuring reliable operation. The cylindrical, nickel-plated brass housing measures 30 mm in diameter and 95 mm in length, and it connects via an M12 connector. This sensor operates within a temperature range of -25 to +60 °C and is rated IP 67 for protection against dust and water ingress, making it suitable for a wide range of industrial applications.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 115 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
