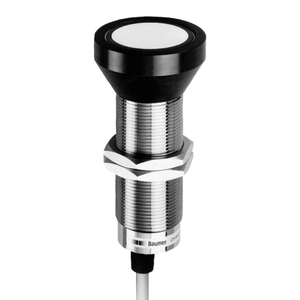

The Baumer UNAM 50P3721/S14 10232793 is a high-performance ultrasonic sensor with a scanning range of 350 to 2500 mm and a repeat accuracy of 1 mm. It features a synchronization option, temperature drift of less than 0.18% Sde/K, and quick response and release times of less than 160 ms. Operating at a sonic frequency of 120 kHz, it includes a potentiometer for adjustments and a target indication flashing for alignment aid. The sensor has a green LED output indicator and operates on a voltage supply range of 12 to 30 VDC with a maximum current consumption of 35 mA. It supports a PNP break function (NC) output circuit with an output current of 200 mA and includes short circuit and reverse polarity protection. The cylindrical threaded housing is made of brass nickel-plated material, measuring 30 mm in width/diameter and 95 mm in height/length, and connects via an M12 connector. Suitable for operating temperatures from -25 to +60 °C, it is IP 67 rated for protection against dust and water ingress.
- Scanning range Sd:
- 350 2500 mm
- Scanning range far limit Sde:
- 350 2500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 1 mm
- Synchronization:
- Yes
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 160 ms
- Release time toff:
- < 160 ms
- Sonic frequency:
- 120 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 95 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
