Baumer UNCK 09U6914 11011510
Baumer

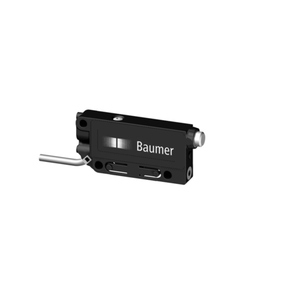

The Baumer UNCK 09U6914/D1 11004067 is a high-precision ultrasonic sensor designed for versatile applications, featuring a scanning range of 3 to 150 mm with repeat accuracy of 0.5 mm and resolution under 0.3 mm. It operates with a response and release time of less than 35 ms and minimal temperature drift. Equipped with a 380 kHz sonic frequency and Teach-in adjustment, it ensures optimal alignment with target indication flashing and dual-color LED status indicators. The sensor supports a voltage supply range of 15 to 30 VDC and includes a voltage output signal of 0 to 10 V or 10 to 0 V. It offers robust protection features including short circuit and reverse polarity protection. The compact, rectangular design with a PA 12 housing and POM beam columnator measures 8.6 mm in width, 82 mm in length, and 24.5 mm in depth, and is connected via a 2-meter PUR cable. Suitable for operating temperatures from 0 to +60 °C and rated IP 67 for water and dust resistance, this sensor is ideal for precise distance measurement tasks in challenging environments.
- Scanning range Sd:
- 3 150 mm
- Scanning range close limit Sdc:
- 3 150 mm
- Scanning range far limit Sde:
- 3 150 mm
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 35 ms
- Release time toff:
- < 35 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Voltage output
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Output current:
- 15 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Material (beam columnator):
- POM
- Width / diameter:
- 8.6 mm
- Height / length:
- 82 mm
- Depth:
- 24.5 mm
- Connection types:
- Cable PUR 4 x 0,08, 2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
