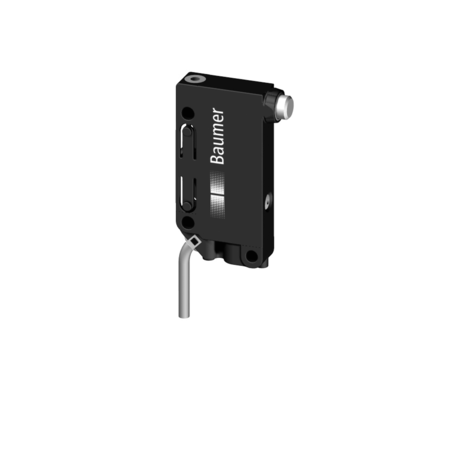

Baumer UNDK 09G8914/IO 11011521

Baumer UNDK 09G8914/IO 11011521

Baumer
SKU:
11011521
Availability:
Contact us to confirm availability and lead times.
$973.00
Condition:
New
Current Stock:
Description
The Baumer UNDK 09G8914/IO is a high-precision ultrasonic sensor with a scanning range of 30 to 200 mm. It features IO-Link communication, offering repeat accuracy as low as 0.5 mm, which improves to less than 0.1 mm with the filter active. The sensor's resolution reaches below 0.3 mm, and with the filter active, it further enhances to below 0.1 mm. It has a quick response time of less than 7 ms and minimal temperature drift. Operating at a sonic frequency of 380 kHz, it includes a teach-in adjustment and visual alignment aids through flashing target indication and dual-color LED status indicators. The sensor operates within a voltage supply range of 18 to 30 VDC and has a maximum current consumption of 35 mA. It supports push-pull and IO-Link output circuits and is equipped with short circuit and reverse polarity protection. The rectangular housing is made from durable PA 12, measuring 8.6 mm in width, 48.8 mm in height, and 30.5 mm in depth. It connects via a 2-meter PUR cable and operates effectively in temperatures ranging from 0 to +60 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress.
Additional Information
Scanning range Sd:
30 … 200 mm
Scanning range close limit Sdc:
30 … 200 mm
Scanning range far limit Sde:
30 … 200 mm
Version:
IO-Link
Repeat accuracy:
0.5 mm
Repeat accuracy (filter active):
< 0.1 mm
Resolution:
< 0.3 mm
Resolution (filter active):
< 0.1 mm
Response time ton:
< 7 ms
Temperature drift:
> 50 mm < 2 % of distance to target Sde
Sonic frequency:
380 kHz
Adjustment:
Teach-in and IO-Link
Alignment aid:
Target indication flashing
Light indicator:
Green LED / red LED
Voltage supply range +Vs:
18 … 30 VDC
Current consumption max. (no load):
35 mA
Output circuit:
Push-pull / IO-Link
Baud rate:
38400
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Rectangular
Housing material:
PA 12
Width / diameter:
8.6 mm
Height / length:
48.8 mm
Depth:
30.5 mm
Connection types:
Cable PUR 4 x 0,08, 2 m
Operating temperature:
0 … +60 °C
Protection class:
IP 67
Datasheet:
View
Operating Manual:
View
