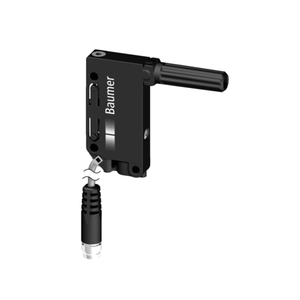

Baumer UNDK 09U6914/KS35A 11011518
Baumer
$944.00
The Baumer UNDK 09U6914/KS35A 11011518 is a high-precision ultrasonic sensor designed for versatile applications, featuring a scanning range of 30 to 200 mm with repeat accuracy of 0.5 mm and resolution under 0.3 mm. It operates with a response and release time of less than 35 ms and minimal temperature drift. The sensor emits at a sonic frequency of 380 kHz and includes a teach-in adjustment for easy setup. Visual alignment and status are indicated by flashing target indication and dual-color LEDs. It supports a voltage supply range of 15 to 30 VDC and has a maximum current consumption of 35 mA. Output is provided via a voltage signal (0 to 10 V or 10 to 0 V) with a maximum output current of 15 mA. The sensor is built for durability in a rectangular PA 12 housing, measuring 8.6 mm in width, 48.8 mm in length, and 30.5 mm in depth, and includes a flylead connector M8. It operates within a temperature range of 0 to +60 °C and is protected against short circuits, reverse polarity, and environmental conditions with an IP 67 rating.
- Scanning range Sd:
- 30 200 mm
- Scanning range close limit Sdc:
- 30 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 35 ms
- Release time toff:
- < 35 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Voltage output
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Output current:
- 15 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 48.8 mm
- Depth:
- 30.5 mm
- Connection types:
- Flylead connector M8, L=200 mm
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
