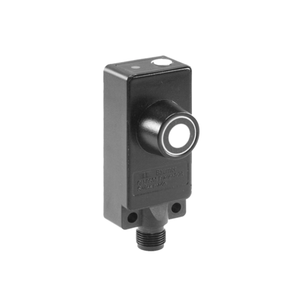

Baumer UNDK 30N3712 10233661

Baumer UNDK 30N3712 10233661

Baumer
SKU:
10233661
Availability:
Contact us to confirm availability and lead times.
$1,009.00
Condition:
New
Current Stock:
Description
The Baumer UNDK 30N3712 10233661 is an ultrasonic sensor with a scanning range of 60 to 400 mm and a repeat accuracy of 0.5 mm. It features synchronization capabilities and offers a multiplex version upon request. The sensor operates with a sonic frequency of 400 kHz and includes a potentiometer for adjustments. It provides visual alignment aid through target indication flashing and has a green LED output indicator. The device supports a voltage supply range of 12 to 30 VDC and consumes a maximum of 35 mA with no load. It includes an NPN break function (NC) output circuit with an output current of 200 mA. The sensor is designed with a robust polyester and die-cast zinc housing, measuring 30 mm in width, 65 mm in height, and 31 mm in depth. It connects via a 2-meter cable and operates within a temperature range of -25 to +60 °C. The sensor is protected against short circuits, reverse polarity, and is IP 67 rated for dust and water resistance.
Additional Information
Scanning range Sd:
60 … 400 mm
Scanning range far limit Sde:
60 … 400 mm
Hysteresis typ.:
4 % Sde
Repeat accuracy:
0.5 mm
Synchronization:
Yes
Multiplex version:
On request
Temperature drift:
< 0,18 % Sde/K
Response time ton (sync on):
< 25 ms
Release time toff (sync on):
< 25 ms
Sonic frequency:
400 kHz
Adjustment:
Potentiometer
Alignment aid:
Target indication flashing
Output indicator:
LED green
Voltage supply range +Vs:
12 … 30 VDC
Current consumption max. (no load):
35 mA
Output circuit:
NPN break function (NC)
Output current:
200 mA
Voltage drop Vd:
<2 VDC
Residual ripple:
< 10 % Vs
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Rectangular
Housing material:
Polyester / die-cast zinc
Width / diameter:
30 mm
Height / length:
65 mm
Depth:
31 mm
Connection types:
Cable, L=2 m
Operating temperature:
-25 … +60 °C
Protection class:
IP 67
