Baumer UNDK 30N3713 10125158
Baumer
$1,009.00

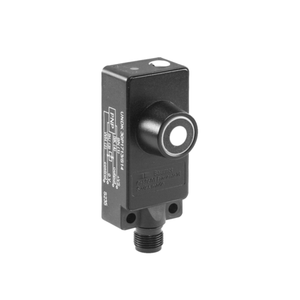

The Baumer UNDK 30N3713 10125158 is an ultrasonic sensor designed for precise distance measurement within a range of 30 to 250 mm. It features a typical hysteresis of 4% Sde and boasts a repeat accuracy of 0.5 mm. The sensor supports synchronization and offers a multiplex version upon request. It has a low temperature drift of less than 0.18% Sde/K and responds quickly with a response and release time of less than 10 ms. Operating at a sonic frequency of 300 kHz, it includes a potentiometer for adjustments and a target indication flashing for easier alignment. The output is indicated by a green LED, and it operates on a voltage supply range of 12 to 30 VDC with a maximum current consumption of 35 mA. The output circuit is an NPN break function (NC) with an output current of 200 mA. It features short circuit and reverse polarity protection, ensuring durability and reliability. The sensor is housed in a robust rectangular body made of polyester and die-cast zinc, measuring 30 mm in width, 65 mm in height, and 31 mm in depth. It connects via a 2-meter cable and operates effectively in temperatures ranging from -25 to +60 °C. The device is IP 67 rated, indicating high resistance to dust and water ingress.
- Scanning range Sd:
- 30 250 mm
- Scanning range far limit Sde:
- 30 250 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Synchronization:
- Yes
- Multiplex version:
- On request
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton (sync on):
- < 10 ms
- Release time toff (sync on):
- < 10 ms
- Sonic frequency:
- 300 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- NPN break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester / die-cast zinc
- Width / diameter:
- 30 mm
- Height / length:
- 65 mm
- Depth:
- 31 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
