Baumer UNDK 30U6113/S14 10126903
Baumer
$1,032.00

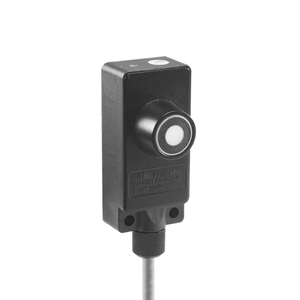

The Baumer UNDK 30U6113/S14 10126903 is an ultrasonic sensor with a scanning range of 30 to 250 mm, featuring high repeat accuracy of 0.5 mm and resolution under 0.3 mm. It has quick response and release times of less than 50 ms, and operates at a sonic frequency of 300 kHz. The sensor includes Teach-in adjustment, target indication flashing for alignment aid, and dual-color LED status indicators. It supports a voltage supply range of 15 to 30 VDC and has a maximum current consumption of 35 mA. The output is a voltage signal ranging from 0 to 10 V or 10 to 0 V, with an output current of 20 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor's rectangular housing is made from polyester and die-cast zinc, measuring 30 mm in width, 65 mm in length, and 31 mm in depth. It connects via an M12 connector and operates within a temperature range of -10 to +60 °C. The device is IP 67 rated, ensuring protection against dust and water ingress.
- Scanning range Sd:
- 30 250 mm
- Scanning range close limit Sdc:
- 30 250 mm
- Scanning range far limit Sde:
- 30 250 mm
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 50 ms
- Release time toff:
- < 50 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Sonic frequency:
- 300 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Voltage output
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Output current:
- 20 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester / die-cast zinc
- Width / diameter:
- 30 mm
- Height / length:
- 65 mm
- Depth:
- 31 mm
- Connection types:
- Connector M12
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
