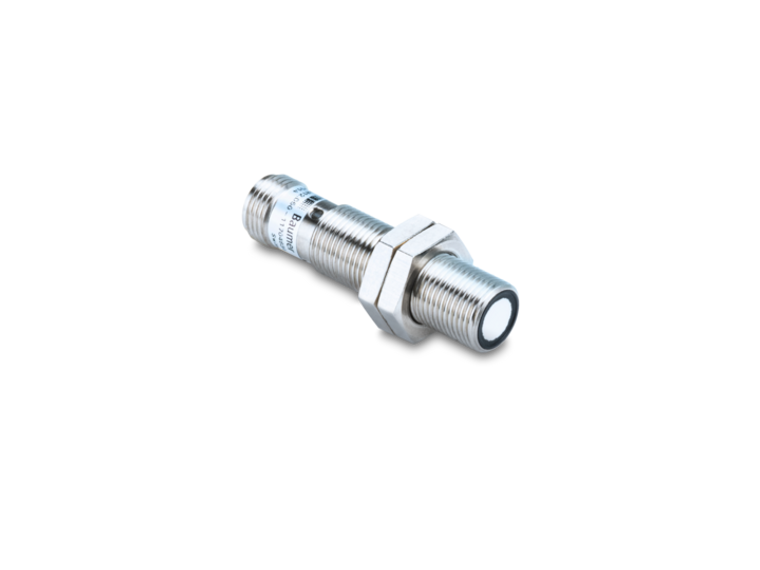

The Baumer UR12.D50-IAMC.7BF is an ultrasonic sensor with a scanning range of 15 to 500 mm, featuring IO-Link dual channel and multiplex capabilities. It offers high precision with a repeat accuracy of less than 0.5 mm and a resolution of less than 0.3 mm. The sensor has a quick response time of less than 40 ms, and a minimum of 16 ms, ensuring rapid feedback. It operates at a sonic frequency of 290 kHz and includes line-Teach and IO-Link for easy adjustment. Visual indicators include a yellow LED for status and a green LED for power. The sensor is designed with a cylindrical threaded brass nickel-plated housing, measuring 12 mm in width and 50 mm in length. It supports a voltage supply range of 12 to 30 VDC and has a typical current consumption of 35 mA. Safety features include short circuit and reverse polarity protection. The sensor operates effectively in temperatures ranging from -25 to +65 °C and is IP 67 rated for dust and water resistance. It connects via a 5-pin M12 connector and is designed for robust industrial environments.
- Scanning range Sd:
- 15 500 mm
- Scanning range close limit Sdc:
- 15 500 mm
- Scanning range far limit Sde:
- 15 500 mm
- Version:
- IO-Link dual channel Multiplex version
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- < 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton/toff standard:
- < 40 ms
- Response time ton/toff min:
- < 16 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde < 50 mm ± 1 mm
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 290 kHz
- Adjustment:
- line-Teach, IO-Link
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 35 mA
- Output circuit:
- Current output
- Baud rate:
- 38.4 kBaud (COM 2)
- Output signal:
- 4 ... 20 mA / 20 ... 4 mA
- Output current:
- 100 mA
- Load resistance:
- < (+Vs - 10V) / 0,02 A
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 12 mm
- Height / length:
- 50 mm
- Connection types:
- Connector M12 5 pin
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
- Operating Manual:
- View
