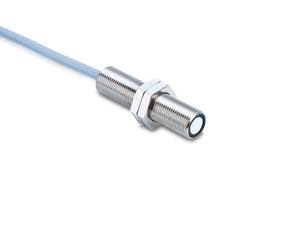

The Baumer UR12.R50-GP1C.7BCU is an ultrasonic sensor with a scanning range of 0 to 500 mm and a reflector position range of 40 to 500 mm. It features IO-Link communication, a repeat accuracy of less than 0.5 mm, and response times as low as 16 ms. The sensor is designed to minimize temperature and power-up drifts, operates at a sonic frequency of 290 kHz, and offers various adjustments via line-Teach or IO-Link. It includes visual alignment aids through flashing light indicators and LED status lights for power and operation. The sensor has a cylindrical, nickel-plated brass housing, measures 12 mm in diameter and 50 mm in length, and connects via a 5-pin, 2-meter cable. It supports a voltage supply range of 12 to 30 VDC, has built-in short circuit and reverse polarity protection, and operates within a temperature range of -25 to +65 °C. The Baumer UR12.R50-GP1C.7BCU is IP 67 rated, ensuring protection against dust and water ingress, making it suitable for a wide range of industrial applications.
- Scanning range Sd:
- 0 500 mm
- Reflector position Sde:
- 40 500 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Version:
- IO-Link
- Repeat accuracy:
- < 0.5 mm
- Response time ton/toff min:
- < 16 ms
- Response time ton/toff standard:
- < 40 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde < 50 mm ± 1 mm
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 290 kHz
- Adjustment:
- line-Teach, IO-Link
- Alignment aid:
- Light indicator flashing
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Resolution:
- < 0.3 mm
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 12 mm
- Height / length:
- 50 mm
- Connection types:
- Cable 5 pin, 2 m
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
