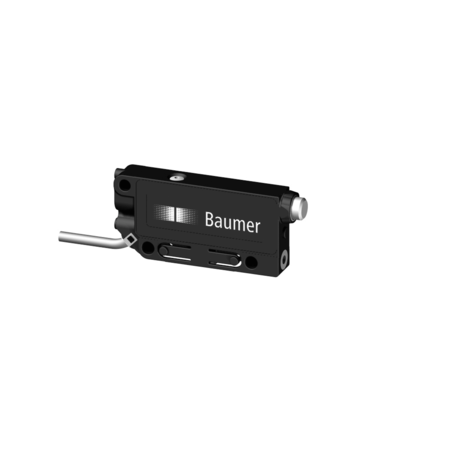

The Baumer URCK 09G8914 11011522 is a high-performance ultrasonic sensor with a scanning range of 0 to 200 mm and a reflector position range of 60 to 200 mm. It features adjustable reflector ranges for both operating and limit conditions, ensuring precise functionality with repeat accuracy of 1.5 mm and minimal temperature drift below 2% Sde. The sensor responds quickly with response and release times under 7 ms and operates at a sonic frequency of 380 kHz. It includes a teach-in adjustment, target indication flashing for alignment aid, and dual-color LED output indicators. The device is powered by a 12 to 30 VDC supply, consumes a maximum of 35 mA with no load, and supports a push-pull output circuit with a maximum output current of 100 mA. It also offers protection against voltage drops, residual ripple, short circuits, and reverse polarity. The rectangular housing is made from durable PA 12, measuring 8.6 mm in width, 55 mm in height, and 24.5 mm in depth, and includes a 2-meter cable for connectivity. Suitable for operating temperatures ranging from 0 to +60 °C, the sensor is IP 67 certified, ensuring robust protection against dust and water ingress.
- Scanning range Sd:
- 0 200 mm
- Reflector position Sde:
- 60 200 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 7 ms
- Release time toff:
- < 7 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green LED / red LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 55 mm
- Depth:
- 24.5 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
