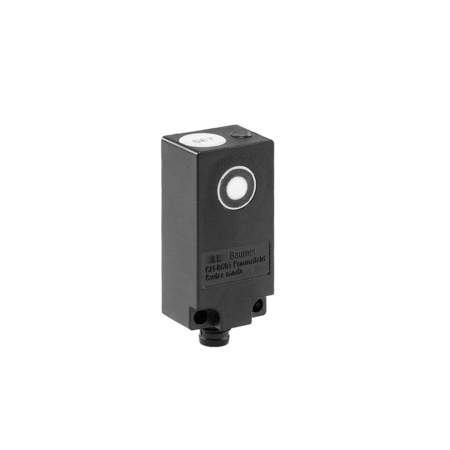

Baumer URDK 20N7914/S35A 11013751
Baumer
The Baumer URDK 20N7914/S35A 11013751 is a high-performance ultrasonic sensor designed for precise distance measurement within a scanning range of 0 to 200 mm. It features a reflector position range of 40 to 200 mm with an adjustable operating range of ±2.5% and a limit range of ±5% of the reflector position. The sensor offers a repeat accuracy of 1.5 mm and is equipped with temperature drift control of less than 2%. It has a quick response and release time of less than 10 ms each, operates at a sonic frequency of 380 kHz, and includes a teach-in adjustment for easy setup. The alignment aid through target indication flashing and a green LED output indicator enhance usability. It operates on a voltage supply range of 12 to 30 VDC, with a maximum current consumption of 35 mA when idle, and supports an output current of 200 mA. The sensor ensures safety with short circuit and reverse polarity protection, housed in a durable polyester rectangular body measuring 20 mm in width, 42 mm in height, and 15 mm in depth. It connects via an M8 connector and operates effectively in temperatures ranging from -10 to +60 °C. The device is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Scanning range Sd:
- 0 200 mm
- Reflector position Sde:
- 40 200 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 10 ms
- Release time toff:
- < 10 ms
- Sonic frequency:
- 380 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- NPN break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester
- Width / diameter:
- 20 mm
- Height / length:
- 42 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
