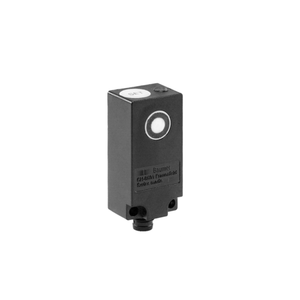

The Baumer URDK 20P6912/S35A 10155031 is an ultrasonic sensor designed for precise distance measurement with a scanning range of 0 to 400 mm and a reflector position range of 100 to 400 mm. It features adjustable reflector ranges for both operating and limit conditions, ensuring flexibility in application. The sensor offers high repeat accuracy of 1.5 mm and minimal temperature drift below 2% Sde, coupled with quick response and release times of less than 25 ms. Operating at a sonic frequency of 290 kHz, it includes a teach-in adjustment and a target indication flashing for easier alignment. The output is indicated by a green LED, and the sensor supports a voltage supply range of 12 to 30 VDC with a maximum current consumption of 35 mA. It includes a PNP make function output circuit with an output current of 200 mA and features short circuit and reverse polarity protection. The rectangular housing is made of durable polyester, measuring 20 mm in width, 42 mm in height, and 15 mm in depth, and connects via an M8 connector. Suitable for operating temperatures from -10 to +60 °C, the sensor is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Scanning range Sd:
- 0 400 mm
- Reflector position Sde:
- 100 400 mm
- Adjusting range reflector (operating range):
- ± 2,5 % Sde
- Adjusting range reflector (limit range):
- ± 5 % Sde
- Repeat accuracy:
- 1.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 25 ms
- Release time toff:
- < 25 ms
- Sonic frequency:
- 290 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester
- Width / diameter:
- 20 mm
- Height / length:
- 42 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
