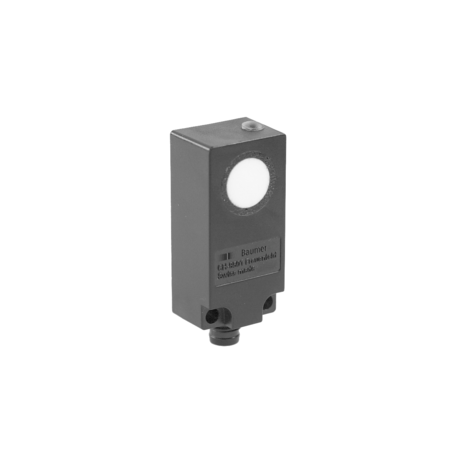

Baumer USDK 20D9003/S35A 10154485
Baumer
The Baumer USDK 20D9003/S35A 10154485 is an ultrasonic sensor designed as an emitter with a scanning range of 0 to 1000 mm and operates at a sonic frequency of 250 kHz. It features a target indication flashing for alignment aid and a yellow LED for power indication. The sensor is powered by a voltage supply range of 15 to 30 VDC and has a maximum current consumption of 40 mA with no load. It includes safety features such as short circuit and reverse polarity protection. The rectangular housing is made of polyester, measuring 20 mm in width, 42 mm in height, and 15 mm in depth, and it connects via an M8 connector. Suitable for operating temperatures from 0 to +60 °C, it is protected against the elements with an IP 67 rating. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/USDK_20D9003_S35A_web_EN.pdf?mediaPK=8801237401630).
- Emitter / receiver:
- Emitter
- Scanning range Sd:
- 0 1000 mm
- Scanning range far limit Sde:
- 0 1000 mm
- Sonic frequency:
- 250 kHz
- Alignment aid:
- Target indication flashing
- Power on indication:
- LED yellow
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 40 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester
- Width / diameter:
- 20 mm
- Height / length:
- 42 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
