Baumer UZAM 70P8131/S14C 11099365

Baumer UZAM 70P8131/S14C 11099365

Baumer
SKU:
11099365
Availability:
Contact us to confirm availability and lead times.
$994.00
Condition:
New
Current Stock:
Description

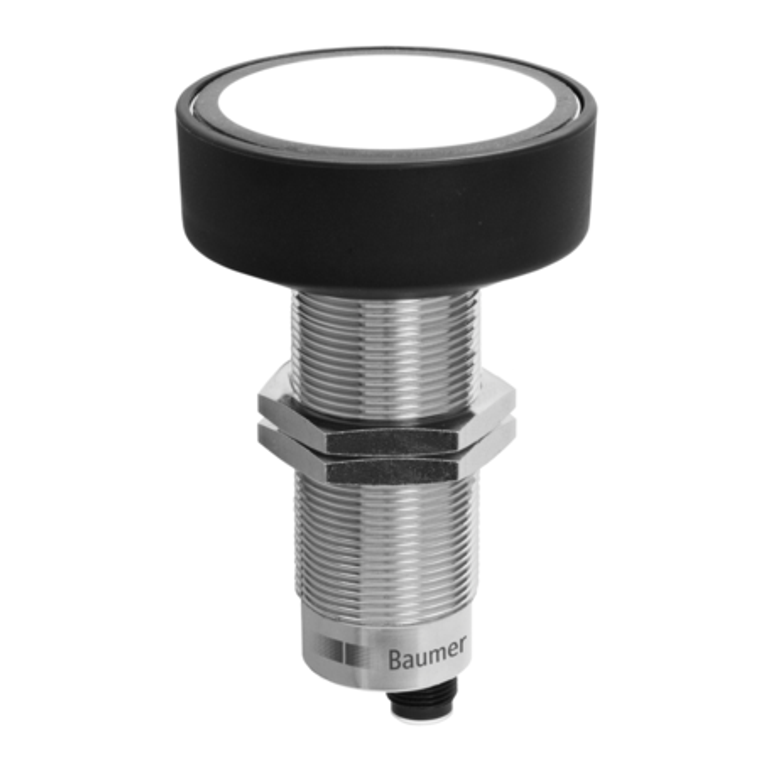

Baumer UZAM 70P8131/S14C 11099365 is a 2-point proximity switch with a scanning range of 600 to 6000 mm and a hysteresis of 4% Sde. It features a repeat accuracy of 3 mm and a temperature drift of less than 2% Sde. The response and release times are both under 240 ms, and it operates at a sonic frequency of 80 kHz. This model includes a Teach-in adjustment, target indication flashing for alignment aid, and dual-color LED output indicators. It supports a voltage supply range of 12 to 30 VDC, consumes a maximum of 40 mA with no load, and offers both PNP make (NO) and break (NC) functions with an output current of 200 mA. The voltage drop is less than 2 VDC, and it has less than 10% residual ripple. It includes short circuit and reverse polarity protection. The device has a cylindrical threaded design with a brass nickel-plated housing, measuring 30 mm in width/diameter and 95 mm in height/length. It connects via an M12 connector and operates within a temperature range of -25 to +60 °C. It is rated IP 67 for protection against dust and immersion.
Additional Information
Special type:
2 point proximity switch
Scanning range Sd:
600 … 6000 mm
Scanning range far limit Sde:
600 … 6000 mm
Hysteresis typ.:
4 % Sde
Repeat accuracy:
3 mm
Temperature drift:
< 2 % Sde
Response time ton:
< 240 ms
Release time toff:
< 240 ms
Sonic frequency:
80 kHz
Adjustment:
Teach-in
Alignment aid:
Target indication flashing
Output indicator:
Green / yellow LED
Voltage supply range +Vs:
12 … 30 VDC
Current consumption max. (no load):
40 mA
Output circuit:
PNP make function (NO) / break function (NC)
Output current:
200 mA
Voltage drop Vd:
<2 VDC
Residual ripple:
< 10 % Vs
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Housing material:
Brass nickel plated
Width / diameter:
30 mm
Height / length:
95 mm
Connection types:
Connector M12
Operating temperature:
-25 … +60 °C
Protection class:
IP 67
